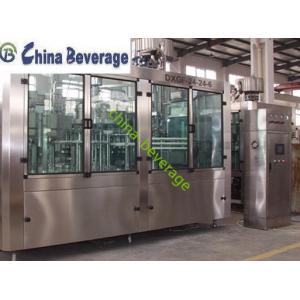

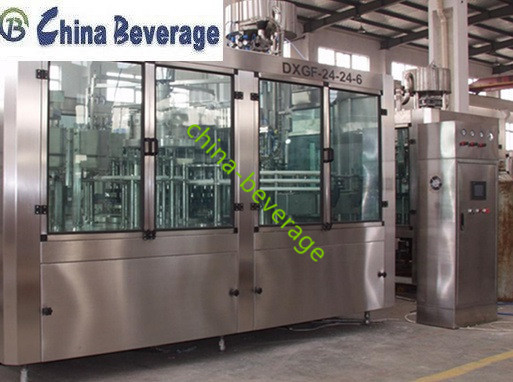

8000BPH Automatic Liquid Carbonated Beverage Bottle Filling Machine

General Description

This 8000BPH automatic liquid carbonated beverage bottle filling machine combins bottle washing, filling and sealing. It is innovated and designed in the requirement of carbonated beverage and soda water, on the basis of introducing, digesting and absorbing advanced technology from Germany and Italy. It is easy operation by touch screen, fully-automatic running by PLC program.

Technical Parameters

Working Procedure

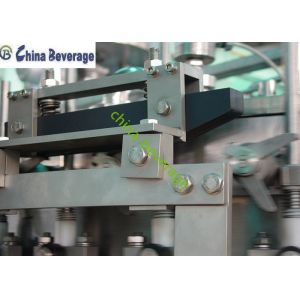

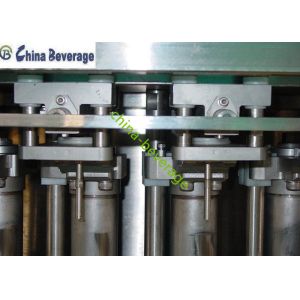

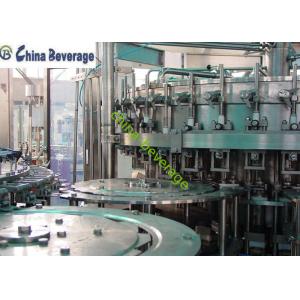

Bottles are fed from air conveyor into the filling machine monoblock via starwheel. Bottle clamp installed on the rotary wheel of the rinser will grip bottle mouth and make a 180º turn along a guide track to face the bottle mouth downward. In designated section of the rinser, rinsing water will jet out from special nozzles to flush bottle inside wall. After rinsing and dripping, bottles gripped by bottle clamp will make another 180º turn along a guide track to resume bottle neck facing up position. Clean bottles are discharged out of the rinser by a starwheel to feed the filler. After entering the filler, bottles are retained by bell cover at the mouth, which are actuated by elevating cylinder to raise them to engage with filling valves, and bell-cover is also lift up at the same time. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism to further stop venting to complete the filling process. Bottle carrier mechanism is lowered by a cam to disengage filled bottles with filling valves. Then bottles are transferred into the capper by a neck handling starwheel. Anti-rotation blades on capping heads will seize the bottle neck to prevent it from rotation and hold it in an upright position. The screw capping head will make revolving and rotating movement along with the machine to finish the complete capping process of cap picking, placing, twisting and disengaging under the control of a cam. A discharge starwheel discharges finished bottles onto discharge conveyor belt to be conveyed out of the filling monoblock.

Model

If you have any interest in our automatic liquid carbonated beverage bottle filling machine , welcome feel free to contact with us.
